White Backlight Fstn 240 * 160 Dots Graphic LCD Module For Matrix Character LCD Display

Name: White Backlight Fstn 240 160 Dots Graphic LCD Module For Matrix Character LCD Display
Brand: ROYAL DISPLAY
Price: 1 USD

China White Backlight Fstn 240 * 160 Dots Graphic LCD Module For Matrix Character LCD Display wholesale

Brand Name : ROYAL DISPLAY

Model Number : RYG240160M

Certification : SGS ROHS

Place of Origin : CHINA

MOQ : 500pcs

Price : Negotiable

Payment Terms : L/C, T/T, , L/C, Western Union, MoneyGram

Supply Ability : 300k/Month

Delivery Time : 25~28 Working Days

Packaging Details : 220pcs/CTN 11Kg L45*W36*H32CM

Product Name : RYG240160M COG Graphic LCD Module FSTN

Model No. : RYG240160M

Dot Format : 240X160

Viewing Angle : 6 O' clock

LED Backlight : Red or Green

Operating Temp : -20º C~70º C

LCD Type : FSTN Postive

Driver : UC1698u

Interface : serial/parallel

Contact Now

White Backlight FSTN 240 * 160 Dots Graphic Matrix Character LCD Display

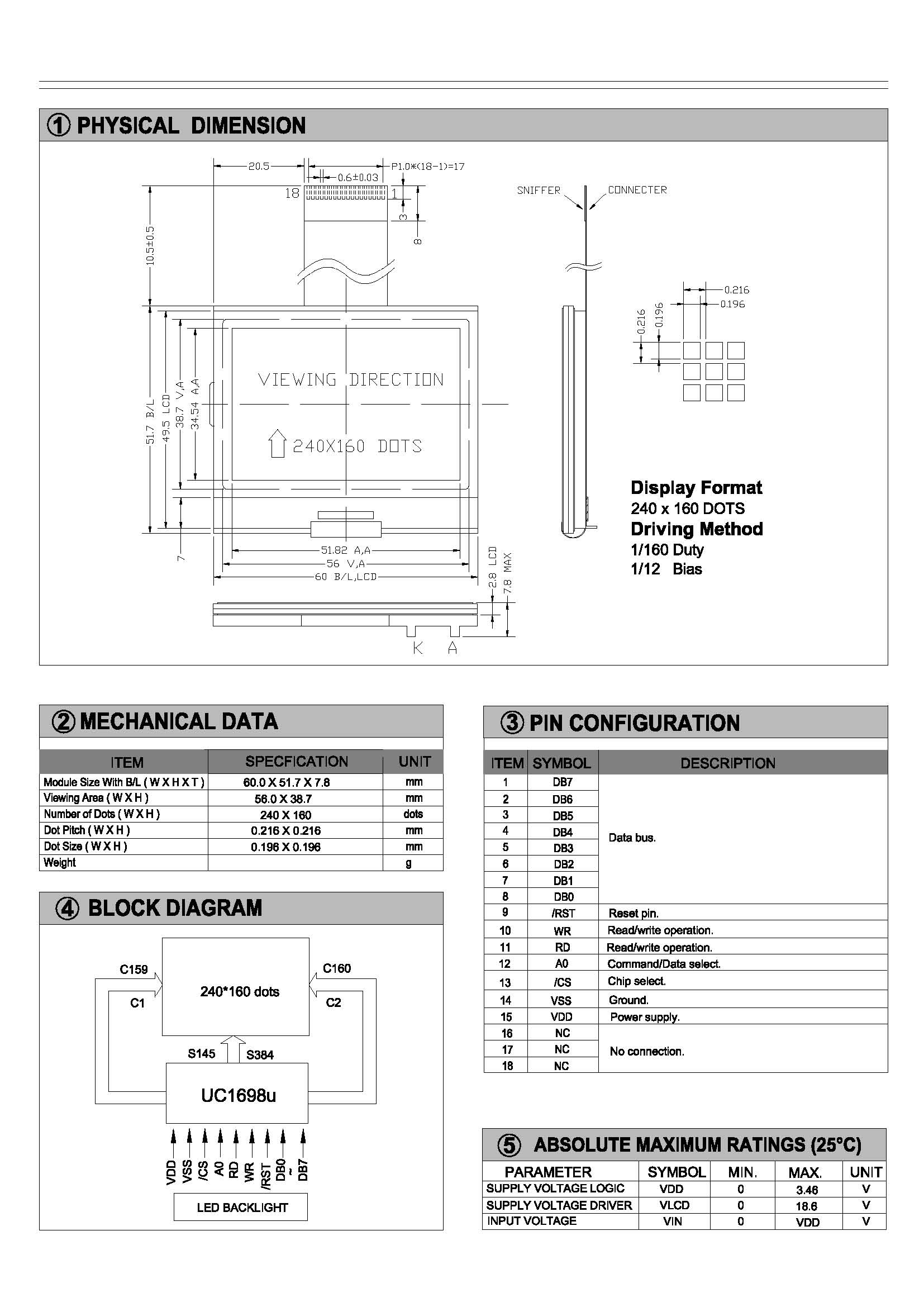

Display Specifications

Item	Description
Product Name	240x160 dots Graphic LCD Module
Model No.	RYG240160M
Dot Format	240 x 160
Outline Dimension(mm)	60*51.7
Viewing Area(mm)	56*38.7
Pixel Size( mm)	0.196 x 0.196
Viewing Angle	6 O' clock
LCD Type	FSTN-Positive, STN-Blue, STN-YG
Backlight	Red or Green LED backlight
Driver IC	UC1698u
Power supply	3.3V
Interface	Parallel
Operating Temp	-20º C~70º C
Storage Temp	-30º C~80º C

Typical Applications

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features

Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range

FAQ

Q1. How can I get the samples?

A: If you need samples, we can make as per your request .You should pay the sample fee and freight. Sample lead time always be within 2-5 days.

Q2. How to order lcd?

A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.

1)Product information-Quantity, part number

2)Delivery time required.

3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.

4)Forwarder's contact details if you have any in China.

Q3. How long can I expect to get the sample?

A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.

Q4. When can I get the datasheet?

A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately

Custom LCD/LCM are available
