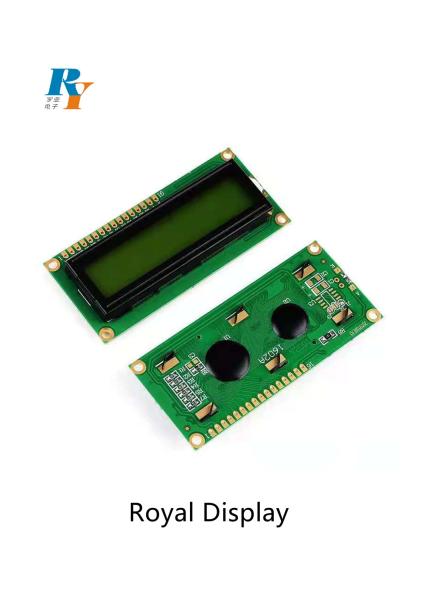

1602 STN DFSTN Character LCD Display 20mA Monochrome COB

Name: 1602 STN DFSTN Character LCD Display 20mA Monochrome COB
Brand: ROYAL DISPLAY
Price: 1 USD

Brand Name : ROYAL DISPLAY

Model Number : RYP1602A

Certification : ISO Rohs

Place of Origin : China

MOQ : 500pcs

Price : Negotiable

Payment Terms : Western Union, L/C, T/T

Supply Ability : 300k/Month

Delivery Time : 25~28 Working Days

Packaging Details : Standard Packaging

LCD Type : Stn

Display Type : 16 Characters*2 Lines

LCD Duty : 1/16

LCD Bias : 1/5

Viewing Direction : 6 O'clock

Outline Dimension(mm) : 80.0(W)X36.0(H)X11.0(D)

Dot Size(mm) : 0.54(W)X0.60(H)

DOT Pitch(mm) : 0.59(W)X0.65(H)

Contact Now

1602 STN DFSTN Character LCD Display Monochrome COB LCD Module

PRODUCT DESCRIPTION

1. 16x2 Characters
2. STN-YG, STN-blue, FSTN-Gray, FSTN-Positive display results as option

Item	Description
Product Name	STN Character 8X1 LCD Display
Outline Dimension (mm)	80.0x36.0x11.0
Viewing Area (mm)	64.5x14.5
Viewing Direction	6 O' clock
Diver IC	AIP31066
Operating Temp	-20º C~70ºC
Storage Temp	-30º C~80º C

1602 STN DFSTN Character LCD Display 20mA Monochrome COB

APPLICATION

More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.

1602 STN DFSTN Character LCD Display 20mA Monochrome COB

FAQ

1. Q: Order process
A:PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo

2. Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days Volume: 3-60 working days

3. Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash

4. Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)

5. Q: RMA Process
A: Claimed by cliens with photos or videos → Sales rep of Royal Display confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Royal Display → Formal report after goods received by Royal Display → Clients confim the analysis report → Proceeding as per the Report both agreed

6. Q: Notes
A: Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
